Parameters
| HSFX-6200/6900/7900 | |
|---|---|
| 型号 | HSFX-6200/6900/7900 |
| Machine external size | L2700xW2500xH1500mm L3000xW2850xH1500mm L3500xW2850xH1500mm |
| Machine external size | 600kg 800kg 1000kg |
| Cutter band total length | 6200mm 6900mm 7900mm |
| Total power of motor | 3.8kw 3.8kw 3.8kw |
| Max cutting height | 600mm 600mm 600mm |
| Max cutting width | W1200xL1200mm W1500x L1200mm W2000xL1200mm |
| Model | HSFX-6200 HSFX-6900 HSFX-7900 |
Hotline：0769-22181936
Related Products
-
HSCNC-2100A -
HSJQ-2L-A Angle Foam Cutting MachineThis machine is mainly used for oblique cutting of sponges, and can also process various EVA, pearl sponge, packaging materials, paper and other products. Widely used in industries such as sofas, furniture, seats, packaging, etc. Easy to operate and precise cutting. -
HSCNC-2200A CNC Contour Cutting Foam MachineThis product adopts a brand new process and appearance design, using Mitsubishi servo system, greatlyimproving the stability and accuracy of the machine; More intelligent and easy to operate. This machine canbe combined with a lifting platform and a slicing machine to form a sponge cutting assembly line, savingtime for laying and receiving materials. The machine continuously processes products, comprehensivelyimproving the utilization rate of the machine and greatly improving production efficiency. -

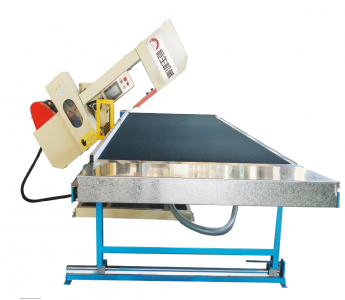

HSJQ-2LB Angle Foam Cutting MachineThis machine is mainly used for oblique cutting of sponges, and can also process various EVA, pearl sponge, packaging materials, paper and other products. Widely used in industries such as sofas, furniture, seats, packaging, etc. Easy to operate and precise cutting. The workbench is adjustable in speed and equipped with a vacuum suction device
